Pipe Markers
Our comprehensive range of pipe markers ensures safety compliance and operational efficiency across all industrial facilities. Each marker is engineered for optimal visibility, weather resistance, and long-term durability in demanding environments.
Complete Start to End Service
Two comprehensive pathways to serve your pipe marking needs - from initial engineering through to final installation. We handle everything, ensuring accuracy and compliance at every step.
Full Engineering Service Workflow
Complete digital twin pipe marking solution with 3D modeling and automated MTO generation
Specification Clarification
Technical review of project requirements, standards, and facility-specific needs. We ensure complete understanding of all marking requirements.
3D Model Marking
Actual marking on the 3D model to represent the project requirements with visualization.
MTO Export
Intelligent extraction of material take-off directly from 3D models after marking. Eliminates manual errors and ensures accuracy in quantities and specifications.
Generated Artwork
Professional artwork creation matching your facility's standards, color coding systems, and compliance requirements for ease of approval
On-Demand Production
High-quality manufacturing using premium materials with rigorous quality control. On-demand production reduces waste and storage needs.

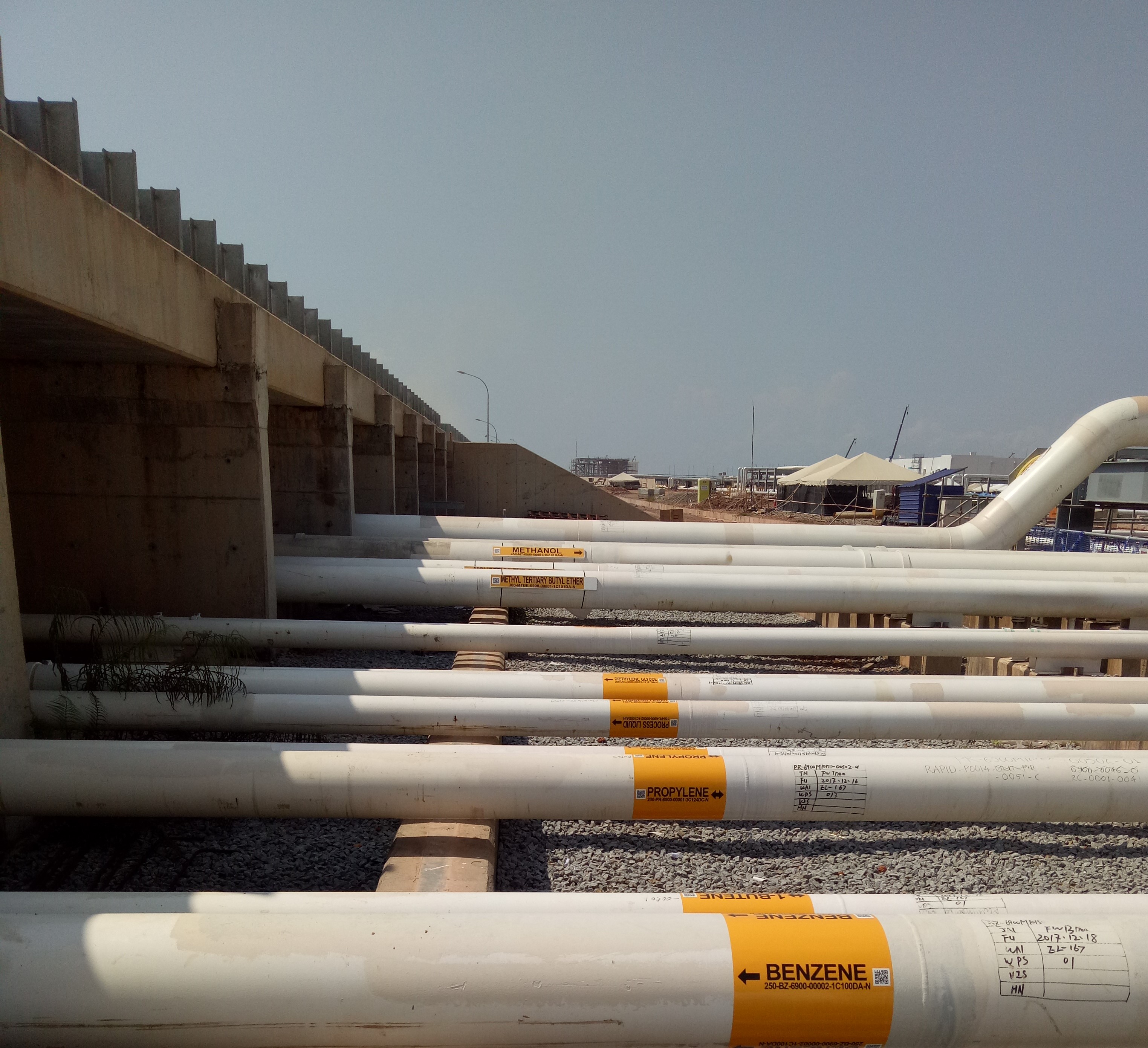

Installation or Installation Guides
Professional onsite installation by our team or a guide for your engineers to do the same efficiently.
What is Digital Twin Pipe Marking?
Digital Twin Pipe Marking is an advanced workflow that creates a virtual replica of your facility's piping system. By integrating 3D modeling with intelligent automation, we can precisely place pipe markers in the digital environment before any physical installation, ensuring perfect accuracy and eliminating costly errors.
97% Accuracy
Digital processes eliminate human errors on-site in placement and specifications
Faster Delivery
Streamlined digital workflow reduces project timelines significantly
Cost Efficient
Reduced waste and optimized material usage through precise planning
Easier Inspection
From installers to inspectors, the digital twin can be used by both to ensure compliance.
Our Product Range
Comprehensive selection of pipe markers for every industrial application

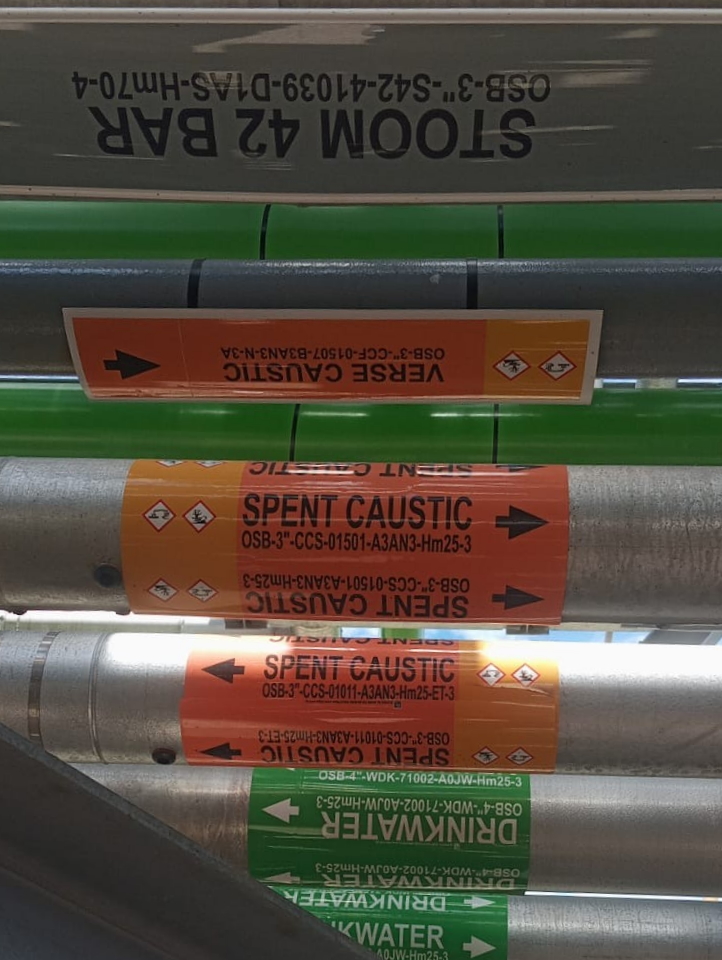

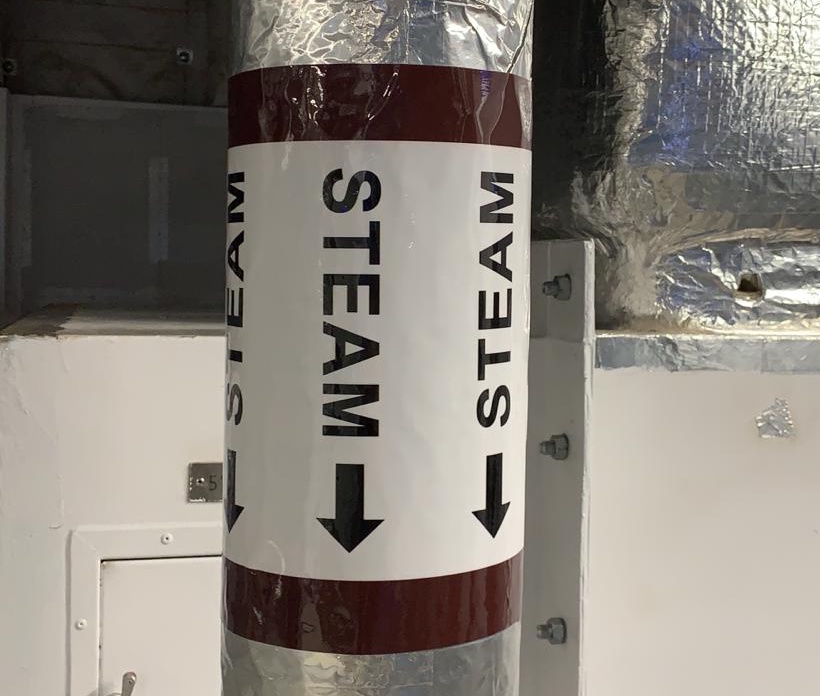

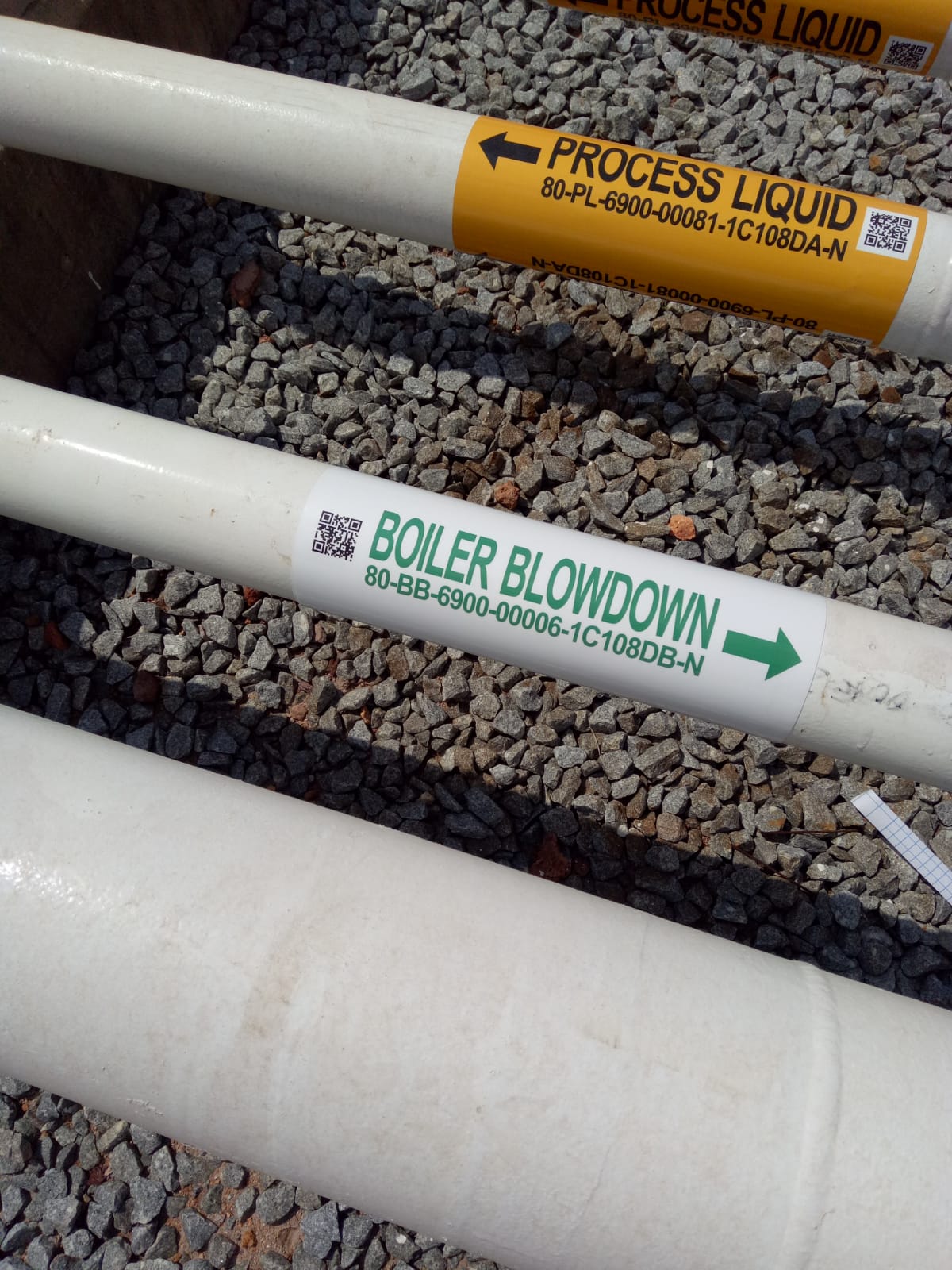

Adhesive Wrap-Around PVC Markers
Self-adhesive wrap-around pipe markers for marine, offshore and petrochemical plants harsh environments. Extended service temperature range with excellent chemical resistance.
Key Features:
- Temperature range: -40°C to 125°C
- 5-year outdoor service life
- 180μm thickness for durability
- Flame resistant on steel surfaces
- Excellent water resistance

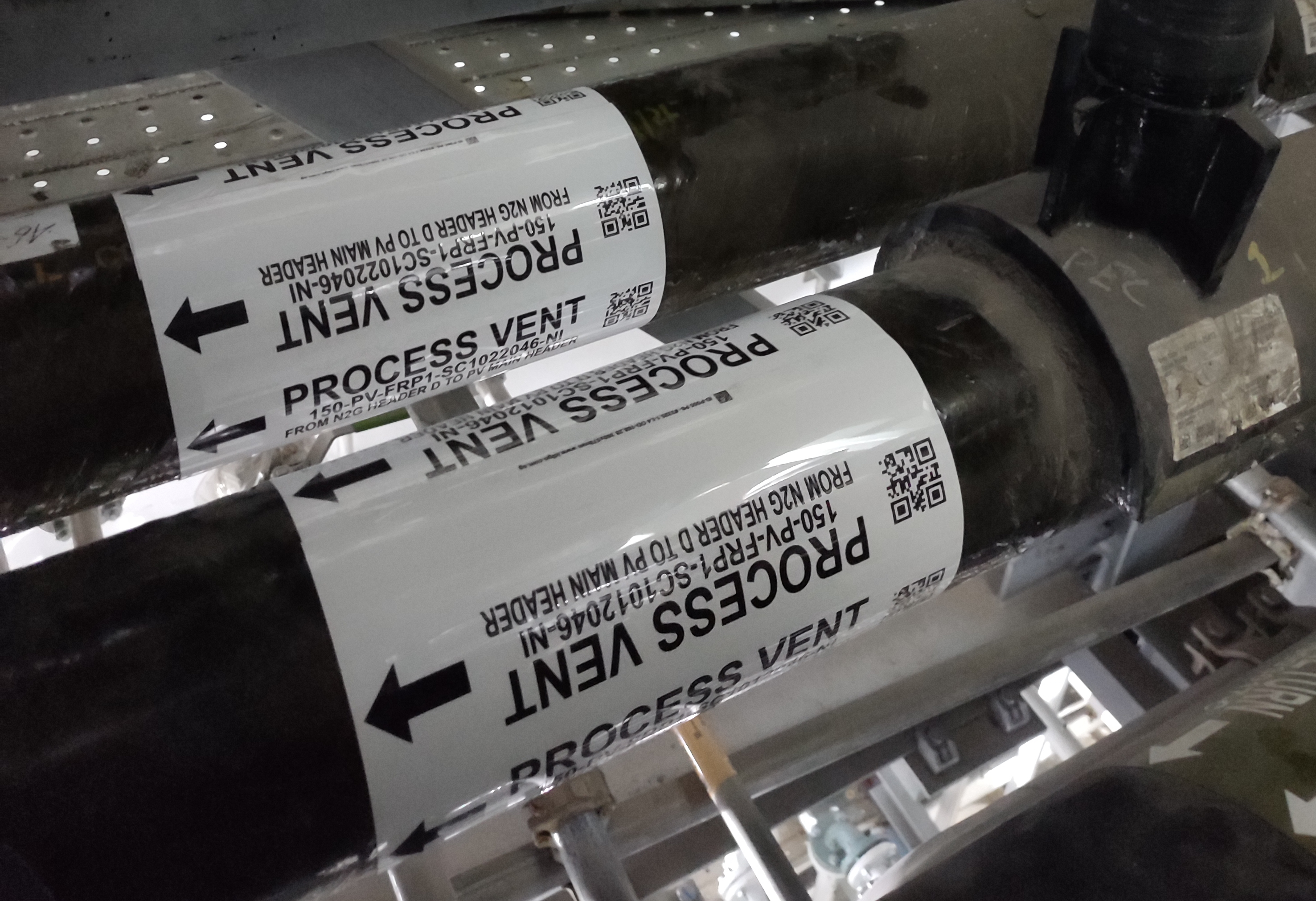

Adhesive Wrap-Around Polyester Markers
Self-securing overlaminated polyester-based pipe markers for marine, offshore and petrochemical plants environments. Extreme temperature tolerance with long service life.
Key Features:
- Temperature range: -50°C to +125°C
- Long outdoor service life
- 86μm thickness with protection layer
- Excellent UV and chemical resistance
- Reusable after removal

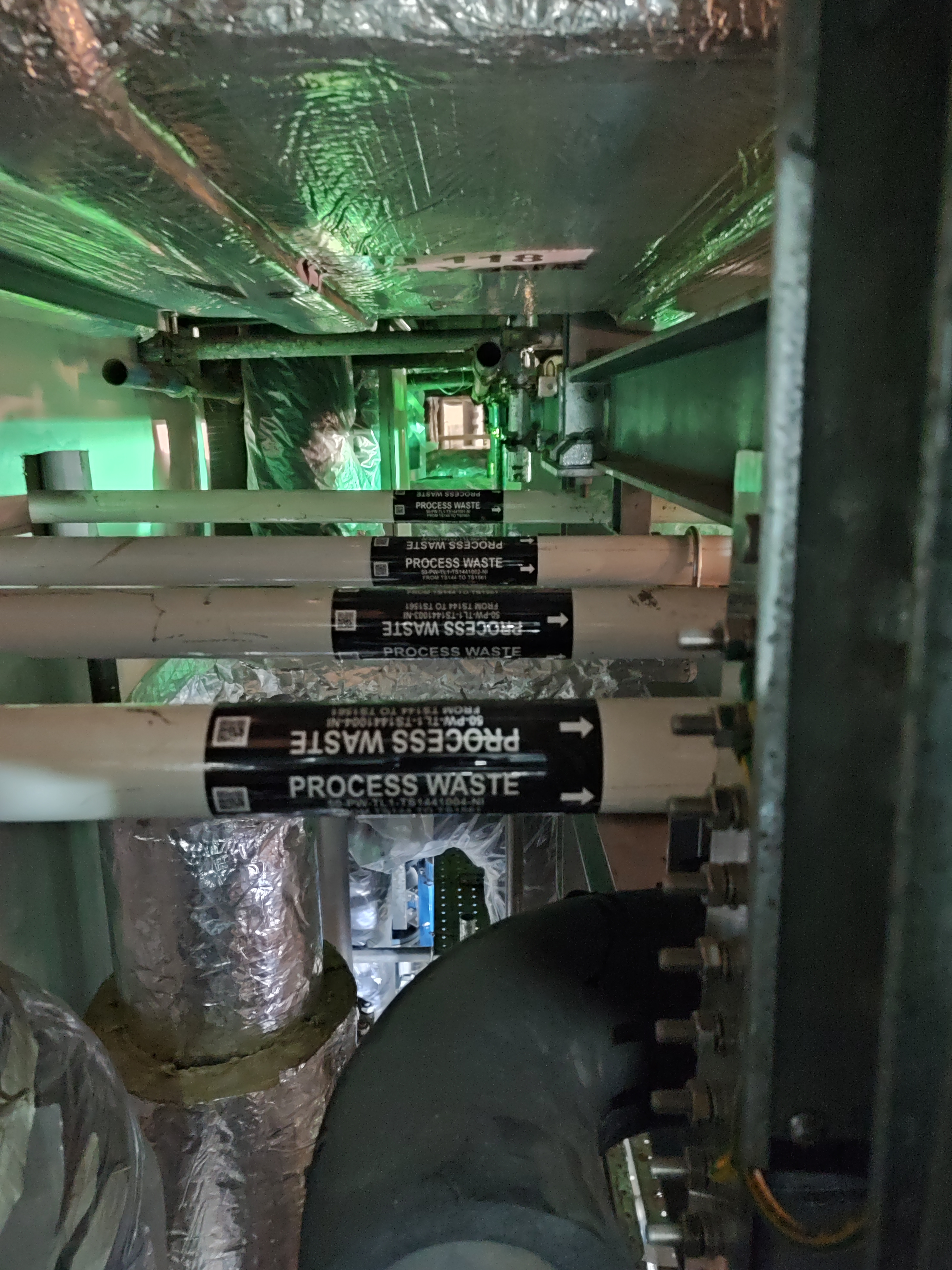

Pre-Coiled Self-Securing Wrap-Around Polyester Pipe Markers
Pre-coiled wrap-around PVDF overlaminated polyester markers for petrochemical plants harsh environments. Features eco-friendly recycled content and ultra-long life protection.
Key Features:
- Temperature range: -50°C to +150°C
- PVDF protective overlamination
- 25% recycled PET-bottle content
- Pre-coiled for easy installation
- 175μm total thickness

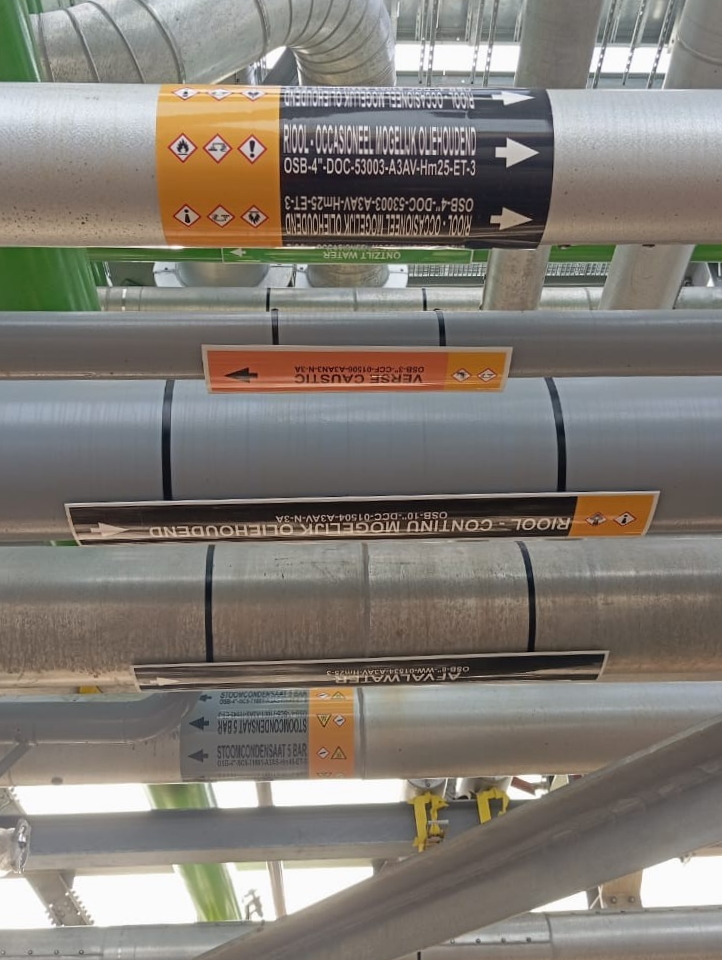

Polyester Plate Markers
Polyester-based pipe markers permanently bonded on curved-shaped carrier for petrochemical plants. Addresses corrosion under label (CUL) issues in high moisture environments.
Key Features:
- Temperature range: -50°C to +85°C
- 2.0-2.5mm thick UV-stable carrier
- Stainless steel strap installation
- High moisture environment solution
- Long service life
Helpful Resources
Access our comprehensive guides and tools to support your pipe marking projects
Pipe Marker Standards Guide
Comprehensive guide covering ISO 14726, ANSI/ASME A13.1, and other international pipe marking standards. Includes color coding requirements, text specifications, and placement guidelines.
View GuideIndustrial Color Picker Tool
Interactive tool to help you select the correct pipe marker colors according to international standards. Match fluid types with compliant color schemes for your facility.
Use Color ToolNeed Custom Pipe Markers?
Every facility has unique identification requirements. Our experts work with you to design and implement pipe marking solutions that meet your specific needs while ensuring full compliance.
